DDEC MULTI ECM Factory-Installed Sensors Location

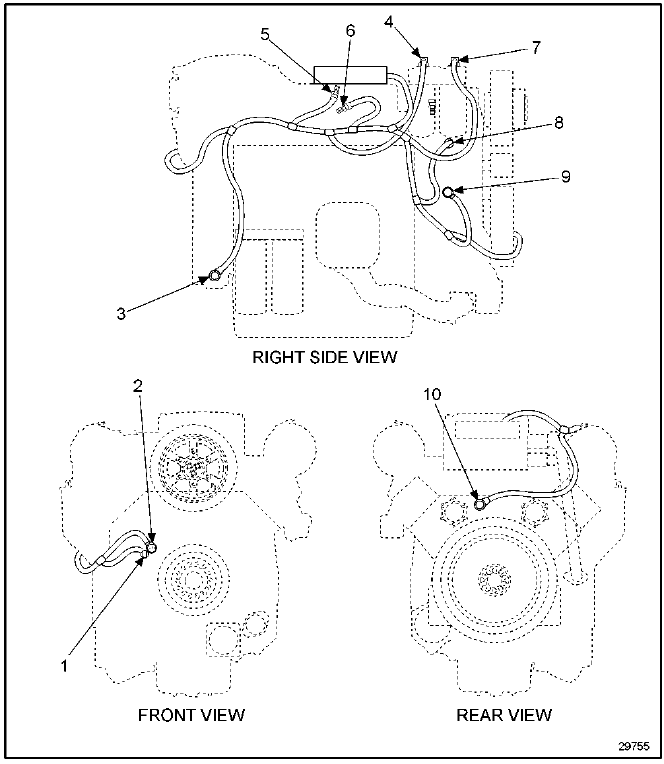

Typical Locations for Factory-installed Sensors, Series 2000 C & I Engines

1. Oil Temperature Sensor
2. Oil Pressure Sensor
3. Timing Reference Sensor
4. Fuel Temperature Sensor
5. Charge Air Temperature Sensor
6. Turbo Boost Sensor
7. Fuel Pressure Sensor
8. Coolant Temperature Sensor
9. Coolant Pressure Sensor
10. Synchronous Reference Sensor

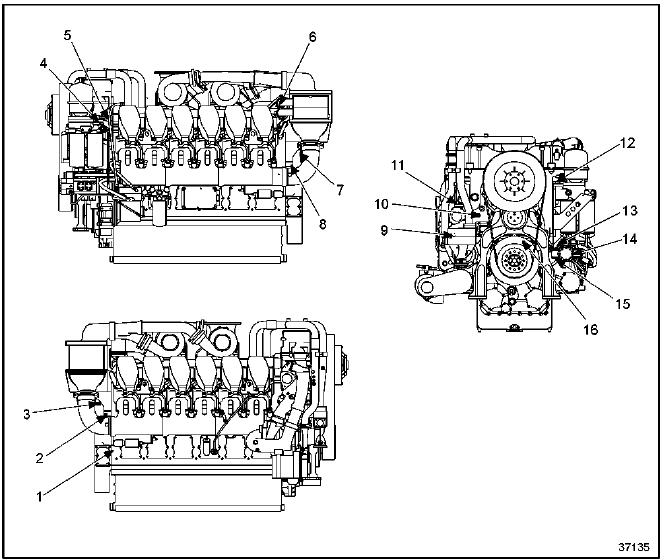

Typical Location for Factory-installed Sensors — Series 4000 C & I Engines

1. Timing Reference Sensor
2. Air Temperature Sensor (Receiver)
3. Turbo Boost Sensor (Receiver)
4. Oil Temperature Sensor
5. Crankcase Pressure Sensor
6. Intercooler Coolant Temperature Sensor
7. Turbo Boost Sensor (Master)
8. Air Temperature Sensor (Master)
9. Intercooler Coolant Pressure Sensor (Behind Thermostat Housing)
10. Engine Coolant Pressure Sensor
11. Engine Coolant Temperature Sensor
12. Oil Pressure Sensor
13. Fuel Supply Pressure Sensor
14. Fuel Temperature Sensor
15. Common Rail Fuel Pressure Sensor
16. Synchronous Reference Sensor
